BMW原廠N45 N45N N46 N46N M54 N52 N52N N51 N20 N55 點火考爾

BMW原廠N45 N45N N46 N46N M54 N52 N52N N51 N20 N55 點火考爾

適用於2009/09以後生產的車型

(也舊用在舊車型N45 N45N N46 N46N M54 N52 N52N N51上)

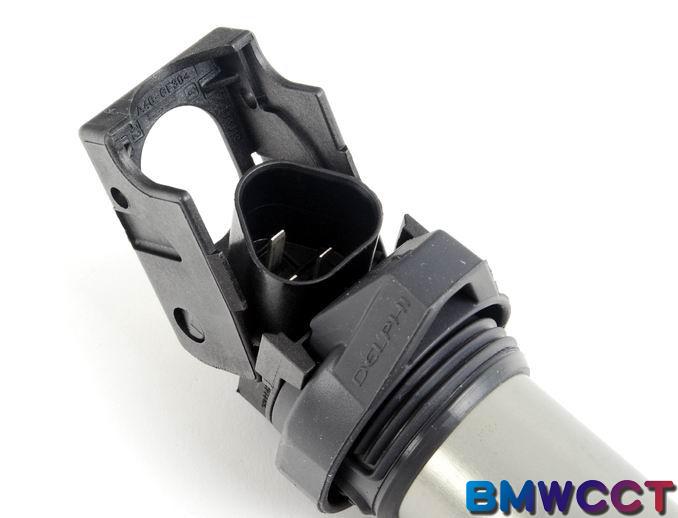

因為新的考耳插頭會比較緊，所以在安裝建議是用尖嘴夾把插頭壓進去，而不是手壓考耳上的壓板把插頭拉進去的(容易接觸不良).

1' Series
E82
135i N55

E88
135i N55

F20
125i N20
M135i N55
M135iX N55

F21
125i N20
M135i N55
M135iX N55

3' Series
E90 LCI
335i N55
335xi N55

E91 LCI
335i N55
335xi N55

E92 LCI
335i N55
335xi N55

E93 LCI
335i N55

F30
320i N20
320iX N20
328i N20
328i N26
328iX N20
328iX N26
335i N55
335iX N55
Hybrid 3 N55

F31
320i N20
320iX N20
328i N20
328iX N20
335i N55
335iX N55

F34
320i N20
320iX N20
328i N20
328iX N20
335i N55
335iX N55

F35
320Li N20
328Li N20

4' Series
F32
420i N20
420iX N20
428i N20
428i N26
428iX N20
428iX N26
435i N55
435iX N55

5' Series
F07
535i N55
535iX N55

F07 LCI
528i N20
535i N55
535iX N55

F10
520i N20
528i N20
528iX N20
535i N55
535iX N55
Hybrid 5 N55

F10 LCI
520i N20
528i N20
528iX N20
535i N55
535iX N55
Hybrid 5 N55

F11
520i N20
528i N20
528iX N20
535i N55
535iX N55

F11 LCI
520i N20
528i N20
528iX N20
535i N55
535iX N55

F18
520Li N20
525Li N20
535Li N55

F18 LCI
520Li N20
525Li N20

6' Series
F06
640i N55
640iX N55

F12
640i N55
640iX N55

F13
640i N55
640iX N55

7' Series
F01 LCI
740i N55
Hybrid 7 N55

F02 LCI
740Li N55
740LiX N55
Hybrid 7L N55

X Series
E70 LCI
X5 35iX N55
X5 40iX N55

E71
X6 35iX N55
X6 40iX N55

E84
X1 16i N20
X1 20i N20
X1 20iX N20
X1 28i N20
X1 28iX N20
X1 35iX N55

F15
X5 35i N55
X5 35iX N55

F25
X3 20iX N20
X3 28iX N20
X3 35iX N55

Z Series
E89
Z4 18i N20
Z4 20i N20
Z4 28i N20
