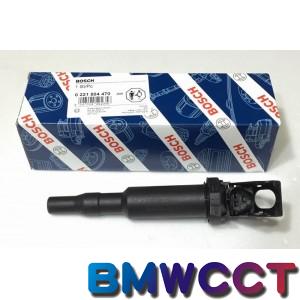

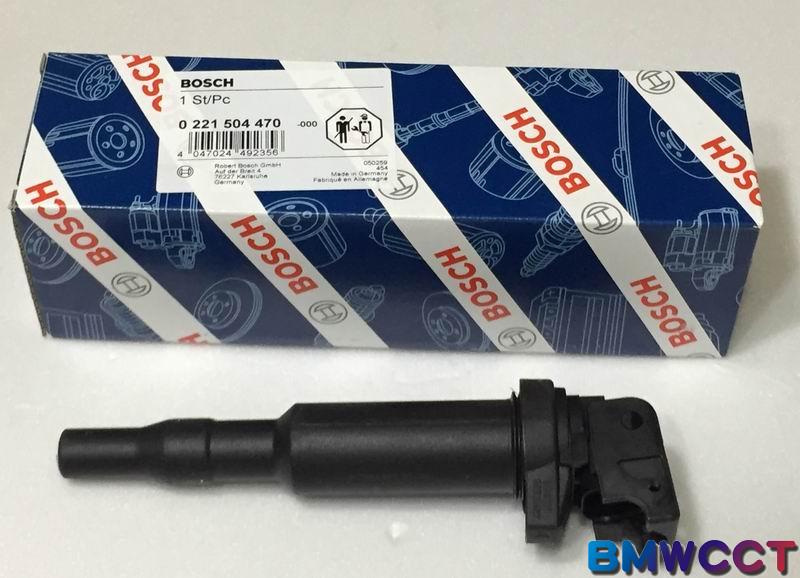

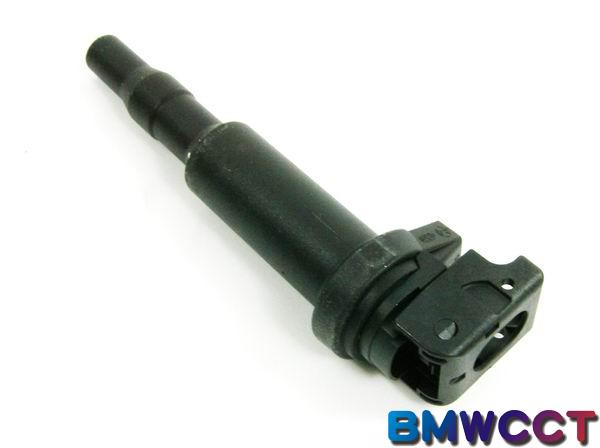

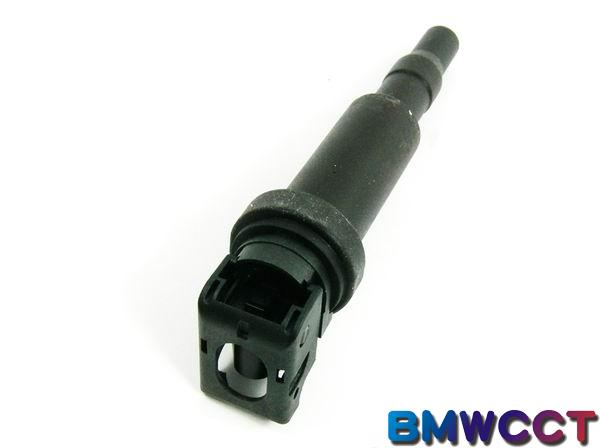

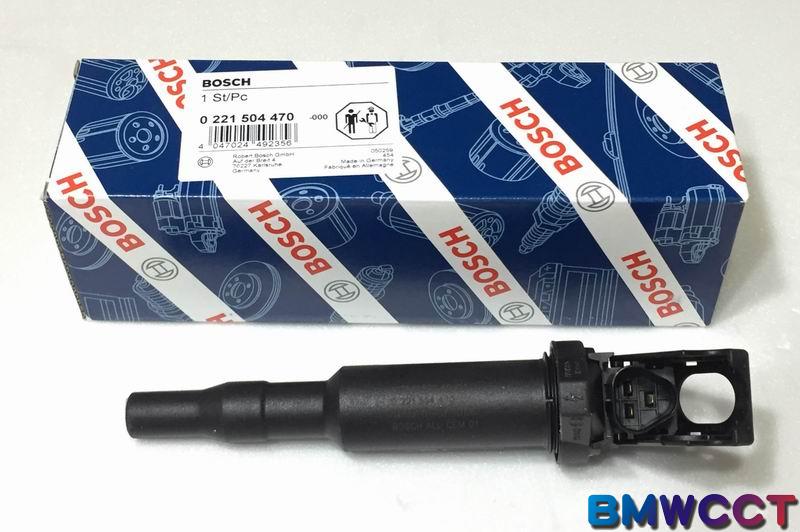

BOSCH N46 N46N N52 N52N N54 N54T N62 N62N點火考爾(2006/04~2009/09)

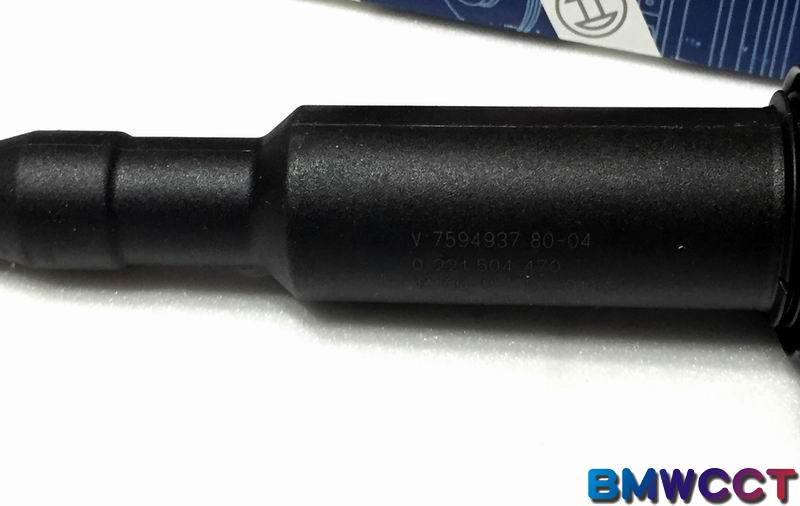

BOSCH製 同BMW 原廠 料號12137594937

適用於2006/04~2009/09之間車型

因為新的考耳插頭會比較緊，所以在安裝建議是用尖嘴夾把插頭壓進去，而不是手壓考耳上的壓板把插頭拉進去的(容易接觸不良).

1' Series
E81
116i 1.6 N45N
118i N46N
120i N46N
130i N52N

E82
120i N46N
125i N52N
128i N52N
128i N51
135i N54
M Coupé N54T

E87
116i N45
118i N46
120i N46
130i N52

E87 LCI
116i 1.6 N45N
118i N46N
120i N46N
130i N52N

E88
118i N46N
120i N46N
125i N52N
128i N51
128i N52N
135i N54

3' Series
E46
316Ci N45
316i N45
316i N46
316ti N45
316ti N46
318Ci N46
318i N46
318ti N46

E90
316i N45
316i N45N
318i N46
318i N46N
320i N46
320i N46N
320si N45
323i N52
323i N52N
325i N52
325i N52N
325xi N52
325xi N52N
328i N51
328i N52N
328xi N51
328xi N52N
330i N52
330i N52N
330xi N52
335i N54
335xi N54

E90 LCI
316i N45N
318i N46N
320i N46N
323i N52N
325i N52N
325xi N52N
328i N51
328i N52N
328xi N51
328xi N52N
330i N52N
335i N54
335xi N54

E91
318i N46
318i N46N
320i N46
320i N46N
323i N52
323i N52N
325i N52
325i N52N
325xi N52
325xi N52N
328i N52N
328xi N52N
330i N52
330i N52N
330xi N52
335i N54
335xi N54

E91 LCI
318i N46N
320i N46N
323i N52N
325i N52N
325xi N52N
328i N52N
328xi N52N
330i N52N
335i N54
335xi N54

E92
320i N46N
323i N52N
325i N52N
325xi N52N
328i N52N
328i N51
328xi N51
328xi N52N
330i N52N
330xi N52N
335i N54
335xi N54

E92 LCI
320i N46N
323i N52N
325i N52N
325xi N52N
328i N51
328i N52N
328xi N51
328xi N52N
330i N52N
335is N54T

E93
320i N46N
323i N52N
325i N52N
328i N51
328i N52N
330i N52N
335i N54

E93 LCI
320i N46N
323i N52N
325i N52N
328i N51
328i N52N
330i N52N
335is N54T

5' Series
E60
523i N52
523Li N52
525i N52
525Li N52
525xi N52
530i N52
530Li N52
530xi N52
540i N62N
545i N62
550i N62N

E60 LCI
520i N46N
520Li N46N
523i N52N
523Li N52N
525i N52N
525Li N52N
528i N52N
528xi N52N
530i N52N
530Li N52N
530xi N52N
535i N54
535xi N54
540i N62N
550i N62N

E61
523i N52
525i N52
525xi N52
530i N52
530xi N52
545i N62
550i N62N

E61 LCI
523i N52N
525i N52N
530i N52N
530xi N52N
535xi N54
550i N62N

F07
550i N63
550i N63N
550iX N63
550iX N63N
550iX 4.0 N63N
550iX 4.4 N63N

F07 LCI
550i N63N
550iX N63N
550iX 4.0 N63N
550iX 4.4 N63N

F10
523i N52N
528i N52N
530i N52N
550i N63
550iX N63
M5 S63N

F10 LCI
550i N63N
550iX N63N

F11
523i N52N
530i N52N
550i N63

F11 LCI
550i N63N

F18
520Li N52N
523Li N52N
528Li N52N
530Li N52N

6' Series
E63
630i N52
645Ci N62
650i N62N

E63 LCI
630i N52N
650i N62N

E64
630i N52
645Ci N62
650i N62N

E64 LCI
630i N52N
650i N62N

F06
650i N63N
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N
M6 S63N

F12
650i N63
650i N63N
650iX N63
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N
M6 S63N

F13
650i N63
650i N63N
650iX N63
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N
M6 S63N

7' Series
E65
730i N52
735i N62
740i N62N
745i N62
750i N62N
760i N73
ALPINA B7 N62

E66
730Li N52
735Li N62
740Li N62N
745Li N62
750Li N62N
760Li N73

E67
745LiS N62
760LiS N73

F01
730i N52N
740i N54
750i N63
750iX N63
760i N74
ALPINA B7 N63
ALPINA B7X N63

F01 LCI
730i N52N
750i N63N
750iX N63N
760i N74
ALPINA B7 N63N
ALPINA B7X N63N

F02
730Li N52N
740Li N54
750Li N63
750LiX N63
760Li N74
ALPINA B7L N63
ALPINA B7LX N63

F02 LCI
730Li N52N
750Li N63N
750LiX N63N
750LiX 4.0 N63N
750LiX 4.4 N63N
760Li N74
ALPINA B7L N63N
ALPINA B7LX N63N

F03
750LiS N63
760LiS N74

F03 LCI
750LiS N63
760LiS N74

F04
Hybrid 7 N63
Hybrid 7L N63

X Series
E53
X5 4.4i N62
X5 4.8is N62

E70
X5 3.0si N52N
X5 4.8i N62N
X5 M S63

E70 LCI
X5 50iX N63

E71
X6 35iX N54
X6 50iX N63
X6 M S63

E72
Hybrid X6 N63

E83
X3 2.0i N46

E83 LCI
X3 2.0i N46
X3 2.5si N52N
X3 3.0i N52N
X3 3.0si N52N

E84
X1 18i N46N
X1 25iX N52N
X1 28iX N52N

F15
X5 50iX N63N
X5 50iX 4.0 N63N
X5 50iX 4.4 N63N

F25
X3 28iX N52N

Z Series
E85
Z4 2.0i N46
Z4 2.5i N52
Z4 2.5si N52
Z4 3.0i N52
Z4 3.0si N52

E86
Z4 3.0si N52

E89
Z4 23i N52N
Z4 30i N52N
Z4 35i N54
Z4 35is N54T
