德副BMW傳動軸六角橡皮 適用大部份非M系列車型 新款車型

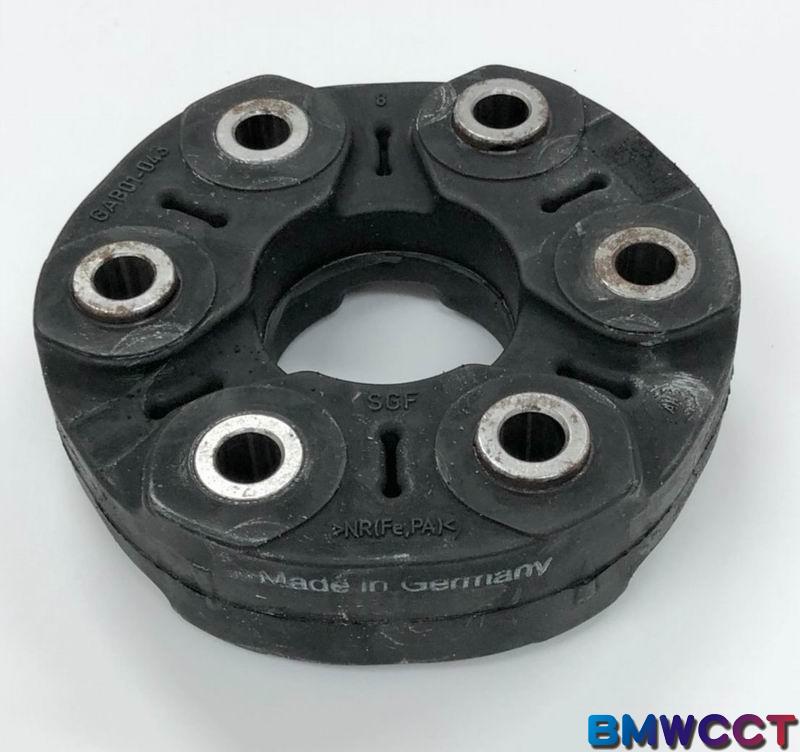

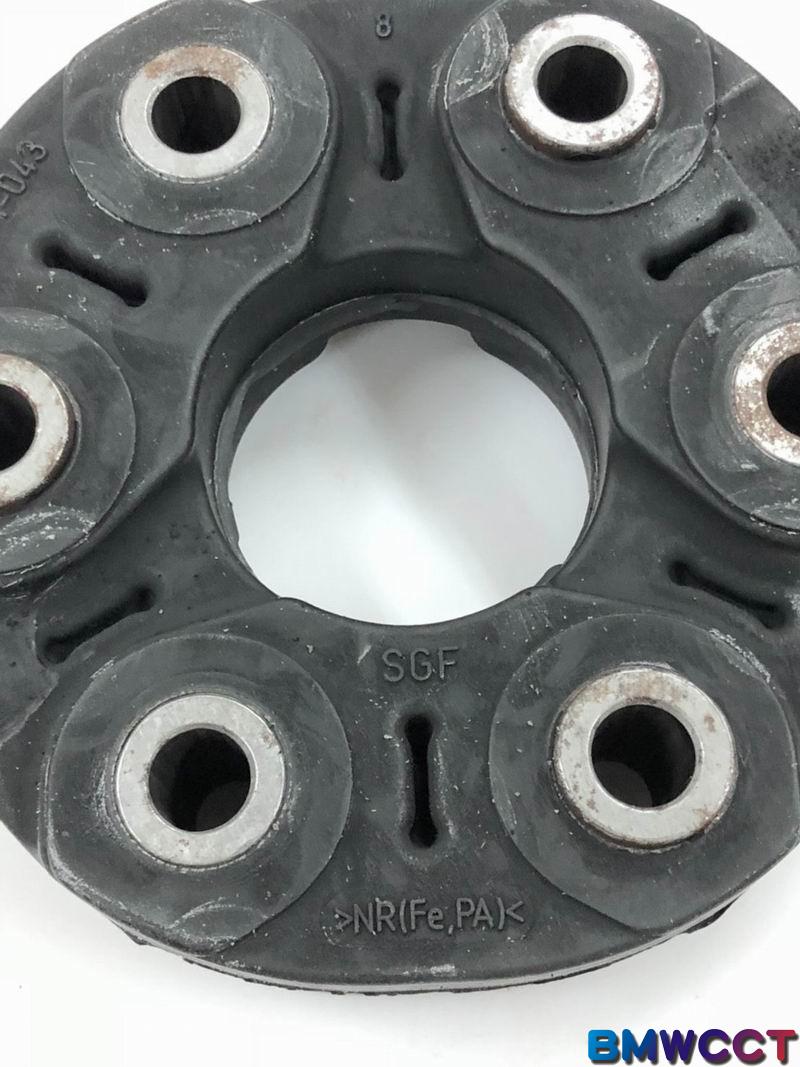

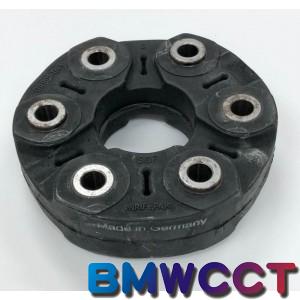

德國副廠 傳動軸六角橡皮

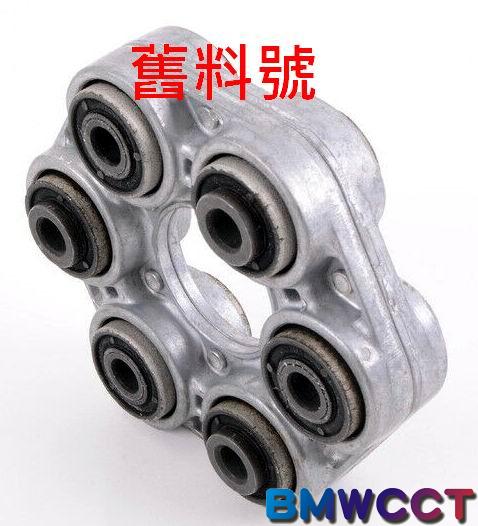

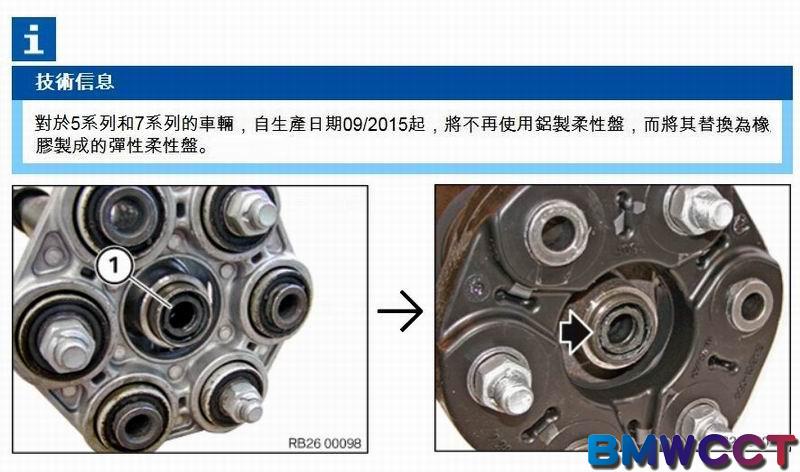

 新款車型的傳動軸前後都各配有一個六角橡皮，因為舊款的前六角橡(如下圖)制振效果差，所以原廠把前後的六角橡皮都改為傳動軸後面的六角橡同一顆.

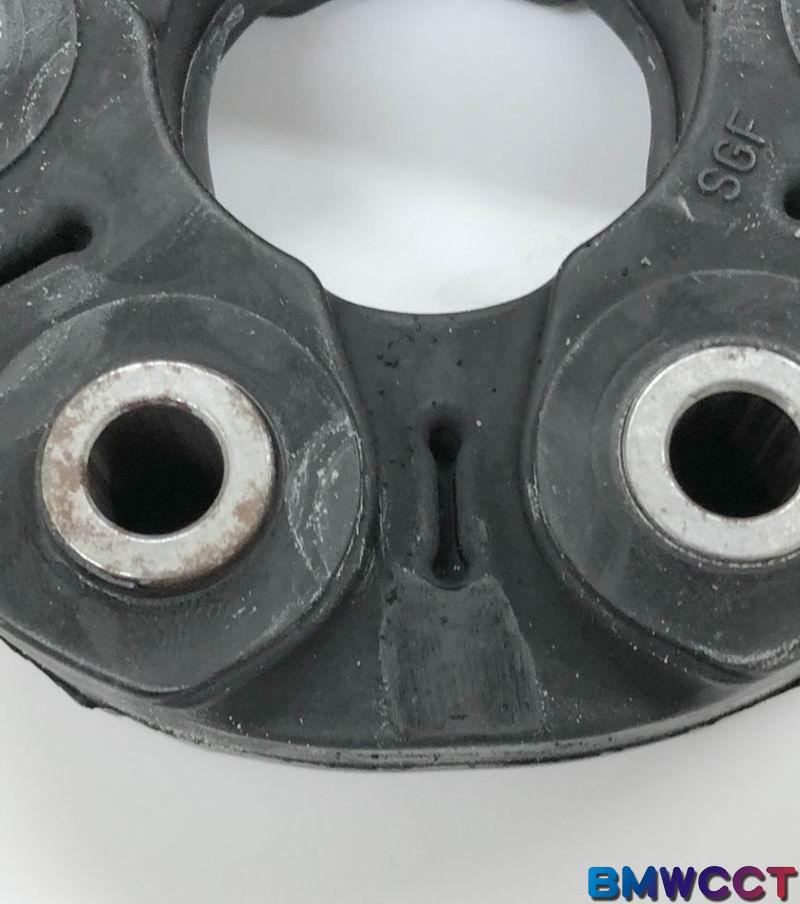

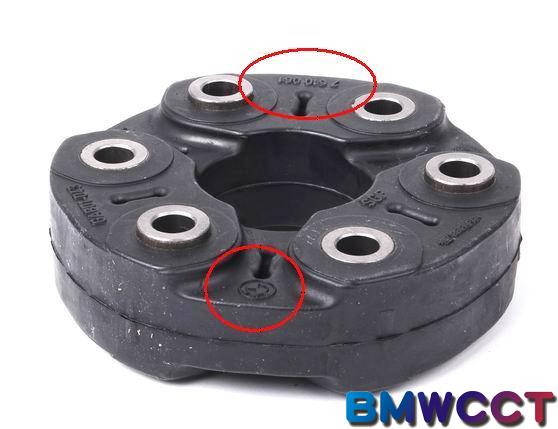

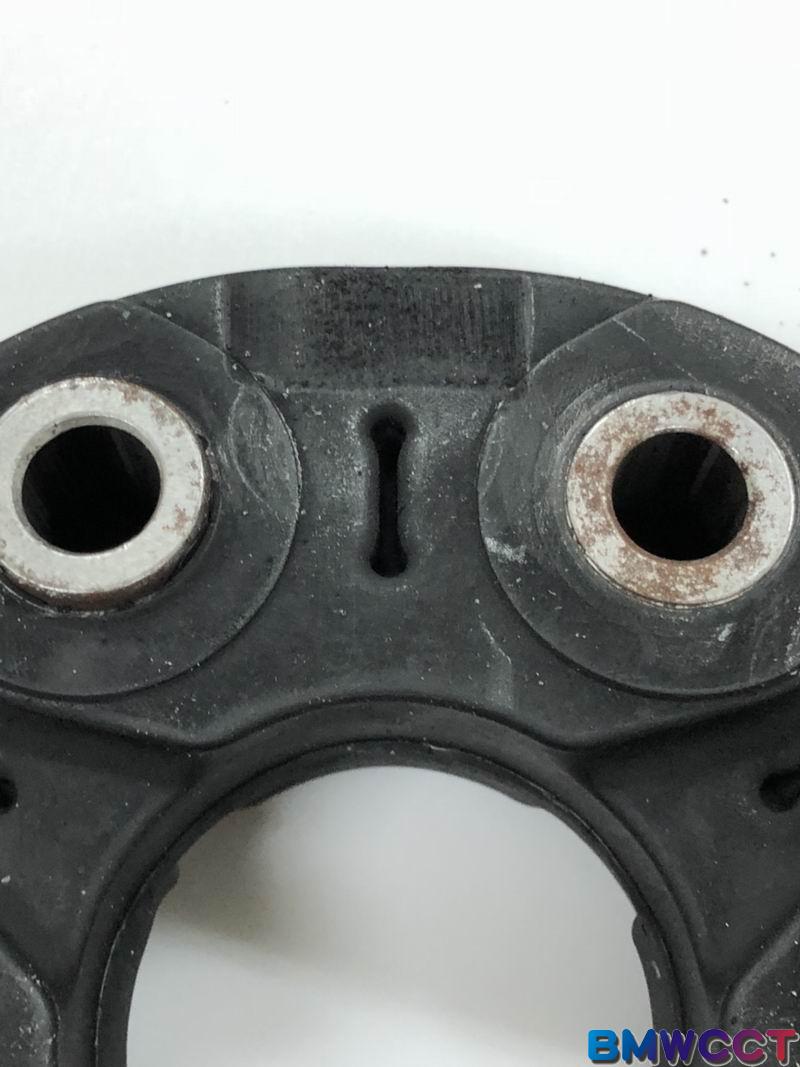

安裝注意：六角橡皮上每個螺絲外側都有一個三角型的標誌，尖的位置是要對準連接法蘭的.

適用以下車型

1' Series
E81
120d N47
123d N47S

E82
120d N47
123d N47S
135i N54
135i N55
M Coupé N54T

E87 LCI
120d N47
123d N47S

E88
120d N47
123d N47S
135i N54
135i N55

F20
120d N47N
125d N47S1
M135i N55

F20 LCI
M135i N55

F21
120d N47N
125d N47S1
M135i N55

F21 LCI
M135i N55

2' Series
F22
220d N47N
220d B47
225d N47S1
225d B47
M235i N55

F23
220d B47
225d B47
M235i N55

3' Series
E90
320d N47
325d M57N2
330xd M57N2
335d M57N2
335i N54

E90 LCI
320d N47
320d N47N
320d ed N47N
325d M57N2
330xd N57
335d M57N2
335i N54
335i N55

E91
320d N47
325d M57N2
330xd M57N2
335d M57N2
335i N54

E91 LCI
320d N47
320d N47N
320d ed N47N
325d M57N2
330xd N57
335d M57N2
335i N54
335i N55

E92
320d N47
325d M57N2
330xd M57N2
330xd N57
335d M57N2
335i N54

E92 LCI
320d N47N
330xd N57
335d M57N2
335i N55
335is N54T

E93
320d N47
325d M57N2
335i N54

E93 LCI
320d N47N
335i N55
335is N54T

F30
320d N47N
320d ed N47N
325d N47S1
330d N57N
335dX N57Z
335i N55
Hybrid 3 N55

F30 LCI
325d N47S1
325d B47
330d N57N
335dX N57Z
340i B58

F31
320d N47N
320d ed N47N
325d N47S1
330d N57N
335dX N57Z
335i N55

F31 LCI
325d N47S1
325d B47
330d N57N
335dX N57Z
340i B58

F34
320d N47N
325d N47S1
330d N57N
330dX N57N
335dX N57Z
335i N55

F35
335Li N55

4' Series
F32
420d N47N
425d N47S1
425d B47
430d N57N
430dX N57N
435dX N57Z
435i N55
440i B58

F33
420d N47N
425d N47S1
425d B47
430d N57N
435dX N57Z
435i N55
440i B58

F36
425d B47
430d N57N
430dX N57N
435dX N57Z
435i N55
440i B58

5' Series
E60
540i N62N
550i N62N

E60 LCI
535i N54
540i N62N
550i N62N

E61
550i N62N

E61 LCI
520d N47
550i N62N

F07
520d N47N
530d N57
530d N57N
530d 155kW N57
530dX N57
530dX N57N
535dX N57S
535dX N57Z
535i N55
535iX N55
550iX N63
550iX N63N
550iX 4.0 N63N
550iX 4.4 N63N

F07 LCI
520d N47N
530d N57N
530dX N57N
535dX N57Z
550iX N63N
550iX 4.0 N63N
550iX 4.4 N63N

F10
520d N47N
525d N57
525dX N47S1
528iX N20
530d N57
530d N57N
530dX N57N
535d N57S
535d N57Z
535dX N57Z
535i N55
535iX N55
550iX N63
Hybrid 5 N55

F10 LCI
518d N47N
518d B47
520d N47N
520d B47
520dX N47N
520dX B47
525dX N47S1
528iX N20
530d N57N
530dX N57N
535d N57N
535dX N57Z
535dX N57N
535i N55
550iX N63N
Hybrid 5 N55

F11
520d N47N
525d N57
525dX N47S1
528iX N20
530d N57
530dX N57N
535dX N57Z
535i N55
535iX N55

F11 LCI
518d N47N
518d B47
520d N47N
520d B47
520dX N47N
520dX B47
525dX N47S1
528iX N20
530d N57N
530dX N57N
535dX N57Z
535iX N55

F18
535Li N55

6' Series
E63
650i N62N

E63 LCI
650i N62N

E64
650i N62N

E64 LCI
650i N62N

F06
640dX N57Z
640iX N55
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N

F06 LCI
640dX N57Z
640iX N55
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N

F12
640dX N57Z
640i N55
640iX N55
650iX N63
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N

F12 LCI
640dX N57Z
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N

F13
640dX N57Z
640iX N55
650iX N63
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N

F13 LCI
640dX N57Z
650iX N63N
650iX 4.0 N63N
650iX 4.4 N63N

7' Series
F01
730d N57
730i N52N
740dX N57S
740i N54
750iX N63

F01 LCI
730d N57N
730dX N57N
730i N52N
740dX N57Z
740i N55
Hybrid 7 N55

F02
730Ld N57
730Li N52N
740Li N54
750LiX N63

F02 LCI
730Ld N57N
740LdX N57N
740Li N55
740LiX N55
750LiX N63N
750LiX 4.0 N63N
750LiX 4.4 N63N
Hybrid 7L N55

G11
730d B57
730dX B57
740dX B57
740i B58
750iX N63R

G12
730Ld B57
730LdX B57
740i B58
740iX B58
740LdX B57
740Li B58
740LiX B58
750iX N63R
750LiX 4.0 N63R
750LiX 4.4 N63R

X1 Series
E84
X1 20d N47
X1 20d N47N
X1 23dX N47S

X5 Series
E70
X5 M S63

E70 LCI
X5 M50dX N57X

F15
X5 M50dX N57X

X6 Series
E71
X6 M S63
X6 M50dX N57X

F16
X6 M50dX N57X

Z Series
E89
Z4 35i N54
Z4 35is N54T
