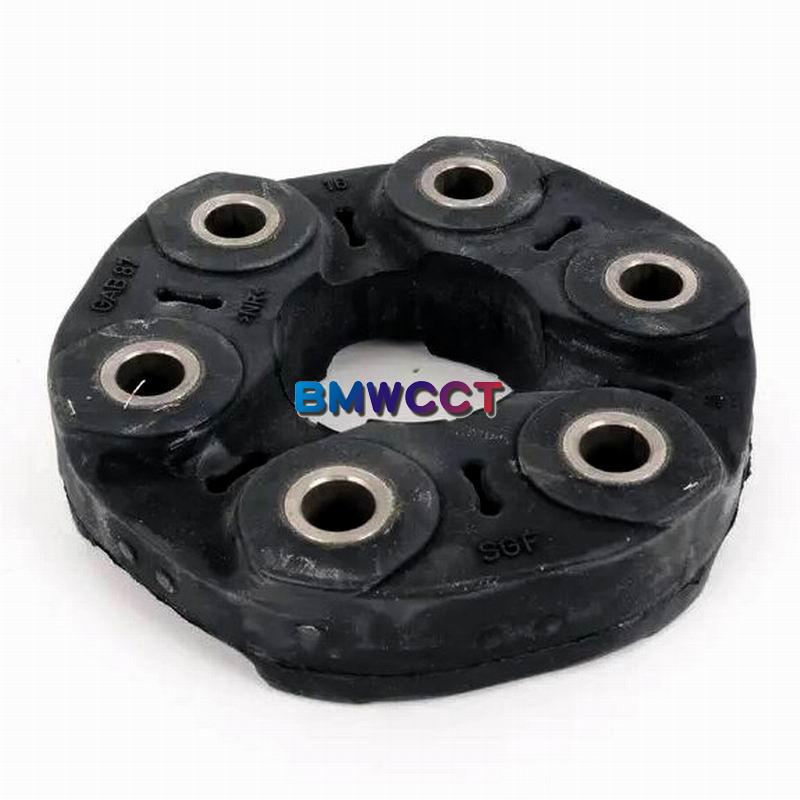

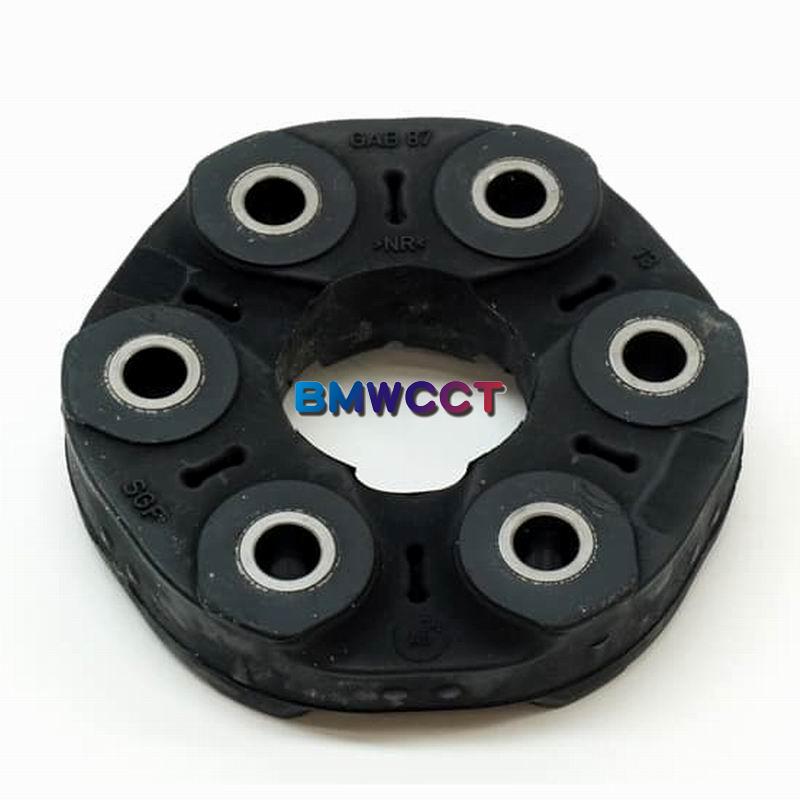

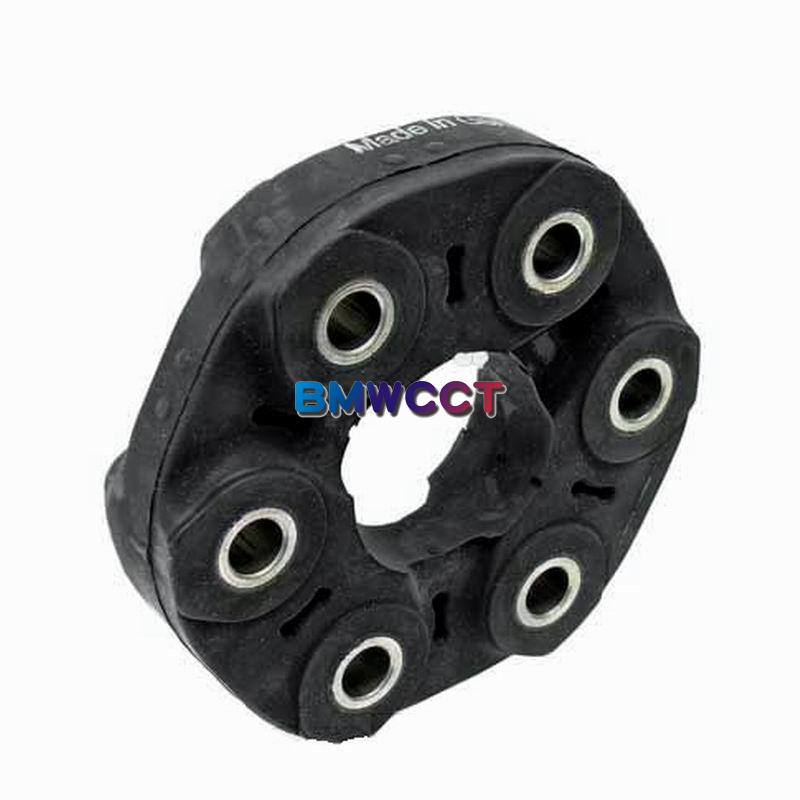

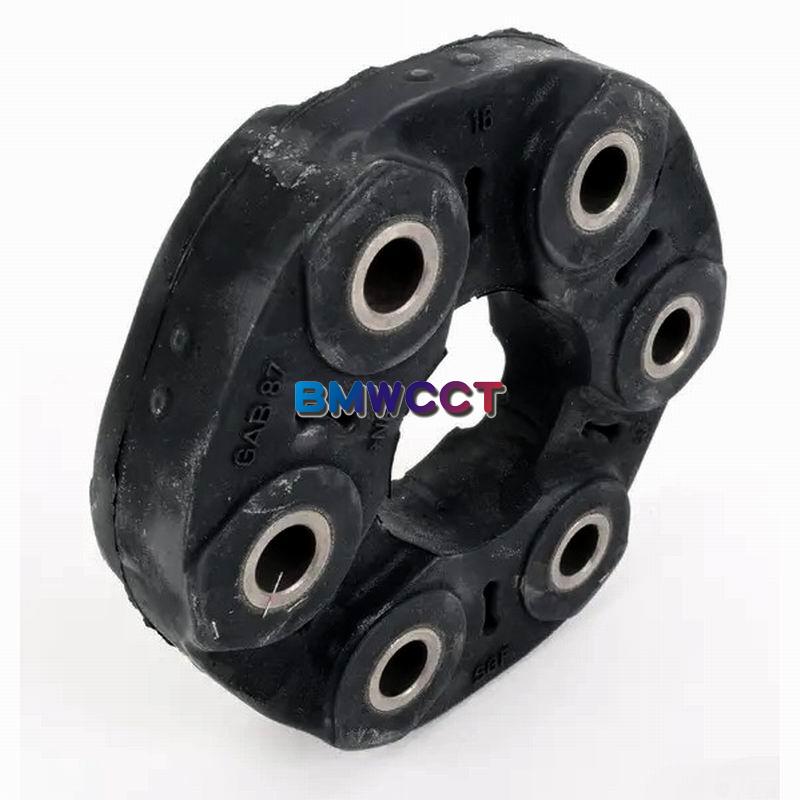

德國SGF BMW傳動軸六角橡皮 大扭力車型

德國SGF BMW傳動軸六角橡皮 大扭力車型

安裝注意：六角橡皮上每個螺絲外側都有一個三角型的標誌，尖的位置是要對準連接法蘭的.

適用以下車型

1' Series
F20
125d N47S1
M135iX N55

F20 LCI
M135iX N55

F21
125d N47S1
M135iX N55

F21 LCI
M135iX N55

2' Series
F22
M235iX N55

F23
M235iX N55

3' Series
E46
325xi M54
330xd M57
330xd M57N
330xi M54

F30
335dX N57Z
335iX N55

F30 LCI
330dX N57N
335dX N57Z
340iX B58

F31
335dX N57Z
335iX N55

F31 LCI
330dX N57N
335dX N57Z
340iX B58

F34
320dX N47N
320dX B47
320iX N20
330dX N57N
335dX N57Z
335iX N55

G20
320dX B47D
320iX B48C
330dX B57
330iX B46D
M340iX B58D

G21
330dX B57
330iX B48D
M340iX B58D

4' Series
F32
430dX N57N
435dX N57Z
435iX N55
440iX B58

F33
435dX N57Z
435iX N55
440iX B58

F36
430dX N57N
435dX N57Z
435iX N55
440iX B58

5' Series
E34
525ix M50

E39
535i M62

F10
525d N47S1
525dX N47S1
528iX N20

F10 LCI
520dX N47N
525dX N47S1
528iX N20

F11
525d N47S1
525dX N47S1
528iX N20

F11 LCI
520dX N47N
525dX N47S1
528iX N20

F18 LCI
528LiX N20

G30
520d ed B47
520dX XD5
520dX B47
520dX B47D
530dX B57
530eX B46X
530eX B48X
530iX B48
530iX B46
530iX B48D
530iX B46D
540iX B58
540iX B58C

G31
520d XD5
520dX XD5

7' Series
E32
730i M60
730iL M60

E38 (1998/09後)
725tds M51
730i M60
730iL M60
735i M62
735iL M62

G11
730dX B57
750iX N63R

G12
730LdX B57
740iX B58
740LiX B58
750iX N63R
750LiX 4.0 N63R
750LiX 4.4 N63R

X3 Series
E83
X3 2.0d M47N2
X3 2.0i N46
X3 2.5i M54
X3 3.0d M57N
X3 3.0d M57N2
X3 3.0i M54

E83 LCI
X3 2.0i N46
X3 3.0d M57N2

F25
X3 20dX N47N
X3 30dX N57N
X3 35dX N57Z

G01
X3 25dX B47
X3 30dX B57
X3 30eX B48X
X3 30eX B46X
X3 30eX B46
X3 30i B46
X3 30iX B46
X3 30iX B48D
X3 30iX B46D
X3 M40dX B57
X3 M40iX B58D

X4 Series
F26
X4 30dX N57N
X4 35dX N57Z

G02
X4 25dX B47
X4 30dX B57
X4 30iX B46
X4 M40dX B57

X5 Series
E53
X5 3.0d M57N
X5 3.0i M54
X5 4.4i N62
X5 4.8is N62

E70
X5 3.0d M57N2
X5 3.0sd M57N2
X5 3.5d M57N2
X5 4.8i N62N
X5 M S63

E70 LCI
X5 30dX N57
X5 35dX M57N2
X5 35iX N55
X5 40dX N57S
X5 40iX N55
X5 50iX N63
X5 M50dX N57X

F15
X5 25dX N57N
X5 28iX N20
X5 30dX N57N
X5 35dX N57N
X5 35iX N55
X5 40dX N57Z
X5 40eX N20
X5 50iX N63N
X5 50iX 4.0 N63N
X5 50iX 4.4 N63N
X5 M50dX N57X

X6 Series
E71
X6 30dX M57N2
X6 30dX N57
X6 35dX M57N2
X6 35iX N54
X6 35iX N55
X6 40dX N57S
X6 40iX N55
X6 50iX N63
X6 M S63
X6 M50dX N57X

E72
Hybrid X6 N63

F16
X6 28iX N20
X6 30dX N57N
X6 35iX N55
X6 40dX N57Z
X6 50iX N63N
X6 50iX 4.0 N63N
X6 50iX 4.4 N63N
X6 M50dX N57X

G06
X6 30iX B48D

X7 Series
G07
X7 40iX B58C
